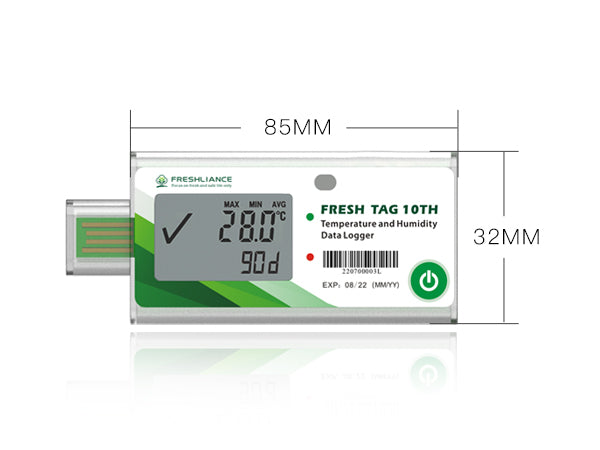

Temperature and Humidity Data Logger FT-10TH

FT-10TH single use temperature and humidity data logger designed for monitoring and recording environmental conditions during cold chain transportation and storage. Featuring a compact lightweight design with large LCD display, this logger provides reliable temperature and humidity tracking for sensitive products throughout the supply chain.

Suitable for refrigerated containers, refrigerated trucks, cooler bags, medical storage, cold rooms, laboratories, pharmaceutical transport, and food cold chain logistics. After use, simply connect the logger directly to a computer via USB to automatically generate encrypted PDF and CSV reports without requiring additional software or cables.

Features

• Single use temperature and humidity data logger
• Large LCD display with intuitive status indication
• Automatic PDF and CSV report generation
• No software or reader required for report download
• Up to 120 days battery life
• Up to 65,000 readings memory capacity
• Configurable logging interval and alarm settings
• Supports up to 6 alarm points and 9 marks
• IP65 protection grade
• Compact lightweight design for easy placement
• Red and green LED status indicators
• Audible and visual alarm indication for abnormal conditions

Specifications

• Model: FT-10TH
• Type: Single Use
• Temperature Range: -30°C to +70°C
• Temperature Accuracy: ±0.5°C F.S.
• Humidity Range: 0% to 100% RH
• Humidity Accuracy:
  • ±3% RH (25°C, 20%~80% RH)
  • ±5% RH (Others)
• Logging Interval: 1 minute to 24 hours (configurable)
• Start Delay: 0 minute to 24 hours (configurable)
• Memory Capacity: Up to 65,000 readings
• Battery: CR2032
• Battery Life: Up to 120 days
• Display: LCD & LED
• Connection: USB / Optional NFC
• Protection Grade: IP65
• Alarm Points: Up to 6
• Marks: Up to 9
• Dimensions: 94mm × 41mm × 8mm
• Weight: 27.5g
• Compatible Systems: Windows / macOS

Certifications & Compliance

• CE Certified
• RoHS Compliant
• EN12830 Compliant
• EMC Tested to EN 61326-1:2013
• Laboratory Tested by BACL (Bay Area Compliance Laboratories)

Recommended Applications

• Cold chain transportation
• Refrigerated containers and trucks
• Frozen food logistics
• Seafood, meat, poultry, and dairy transport
• Fruit, vegetable, and floral logistics
• Pharmaceutical cold chain monitoring
• Medical cabinets and freezers
• Warehouses and laboratories
• Temperature and humidity sensitive cargo

Intelligent Monitoring & Reporting

FT-10TH helps maintain cold chain visibility by continuously recording environmental conditions throughout transportation and storage. Once the trip is completed, the logger automatically generates irreversible encrypted PDF and CSV reports containing graphs, tables, alarm events, and full temperature/humidity history for traceability and compliance purposes.

Alarm & Status Indication

If the temperature or humidity exceeds the configured alarm range, the logger will display an alarm symbol on the LCD screen while the red LED light flashes to indicate abnormal conditions during transport or storage.

This product is designed for single use applications. For best performance, configure required parameters before starting the recording trip.
